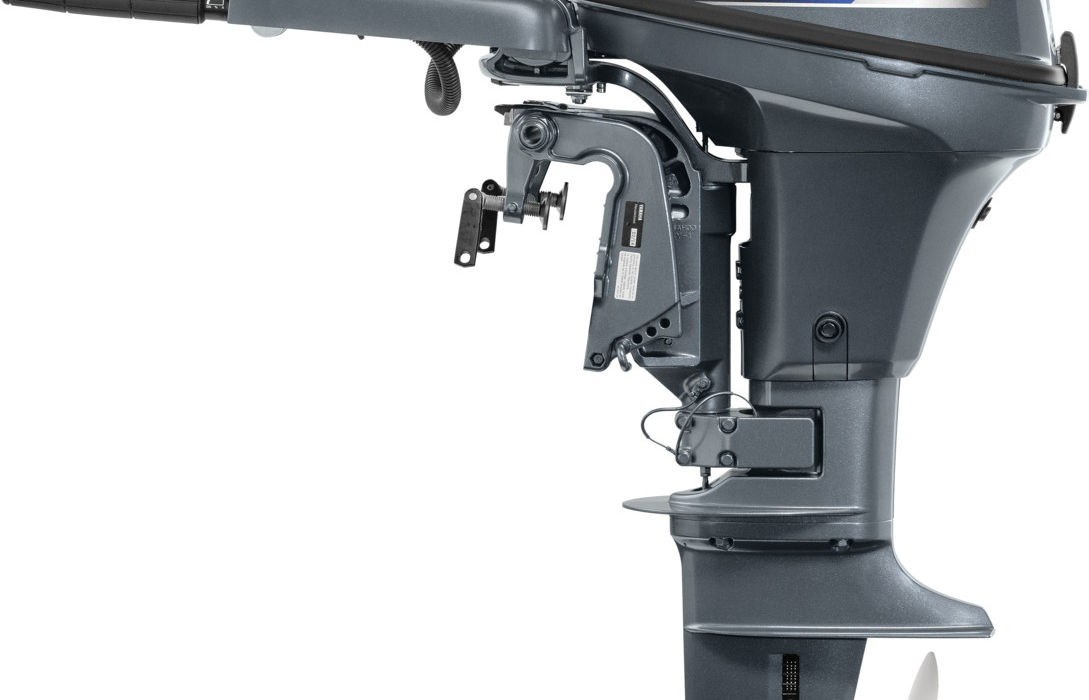

Yamaha 8hp Four stroke Short shaft

For all-round portability, power and performance, the F8 delivers well above its class. The 212cc, inline two-cylinder, four-stroke compact engine provides exceptional speed and acceleration for its size - delivering an ideal engine platform for small tinnies and inflatables. With a fold-in tiller handle, comfortable carry handles and resting pads, these outboards are easy to mount, remove and store. Like all Yamaha engines, the F8 is extremely quiet, has excellent fuel economy, produces low emissions and delivers an exceptional smooth and reliable performance.

• Engine Type4-Stroke, SOHC In-line 2

• Bore x Stroke (mm)56 x 43

• Fuel Tank Capacity (l)12.0

• Displacement (cc)212.0

• Recommended Maximum RPM5000-6000

• Fuel ManagementCarb

• IgnitionCDI

• Lubrication SystemWet-sump

• Alternator Output12V - 6A with Rectifier Regulator

• Gear Ratio2.08 : 1

• Starter SystemManual

• Operation MethodTiller handle

• Trim and Tilt MethodManual Tilt

• Transom Height (mm [inch])S: 431 [17.0] | L: 562 [22.0]

• Dry Weight (kg)S: 40 | L: 43
